Place of Origin: | China |
---|---|
Brand Name: | DOOR |
Certification: | CE / IS09001 |
Model Number: | DR.TD.6628 |
Minimum Order Quantity: | 1 lane |
Price: | Negotiable |
Packaging Details: | wood carton |
Delivery Time: | 5-7 working days |
Payment Terms: | T/T, Western Union, MoneyGram, L/C, D/A, D/P |
Supply Ability: | 2500 sets per month |
Motor: | Servo Motor | Material: | 304# Stainless Steel |
---|---|---|---|
Size: | L1600×W140×H1000mm | Power Supply: | AC110/AC220+/-10% |
Weight: | 80kg | Channel Width: | 550mm-1100mm |
Working Environment: | Indoor | Color: | Red Wine And Black |
Communication Interface: | RS485,dry Contact | ||
High Light: | Access Control Speed Gate Turnstile,AC110V Access Control Gates,Servo Motor Speed Gate Turnstile |

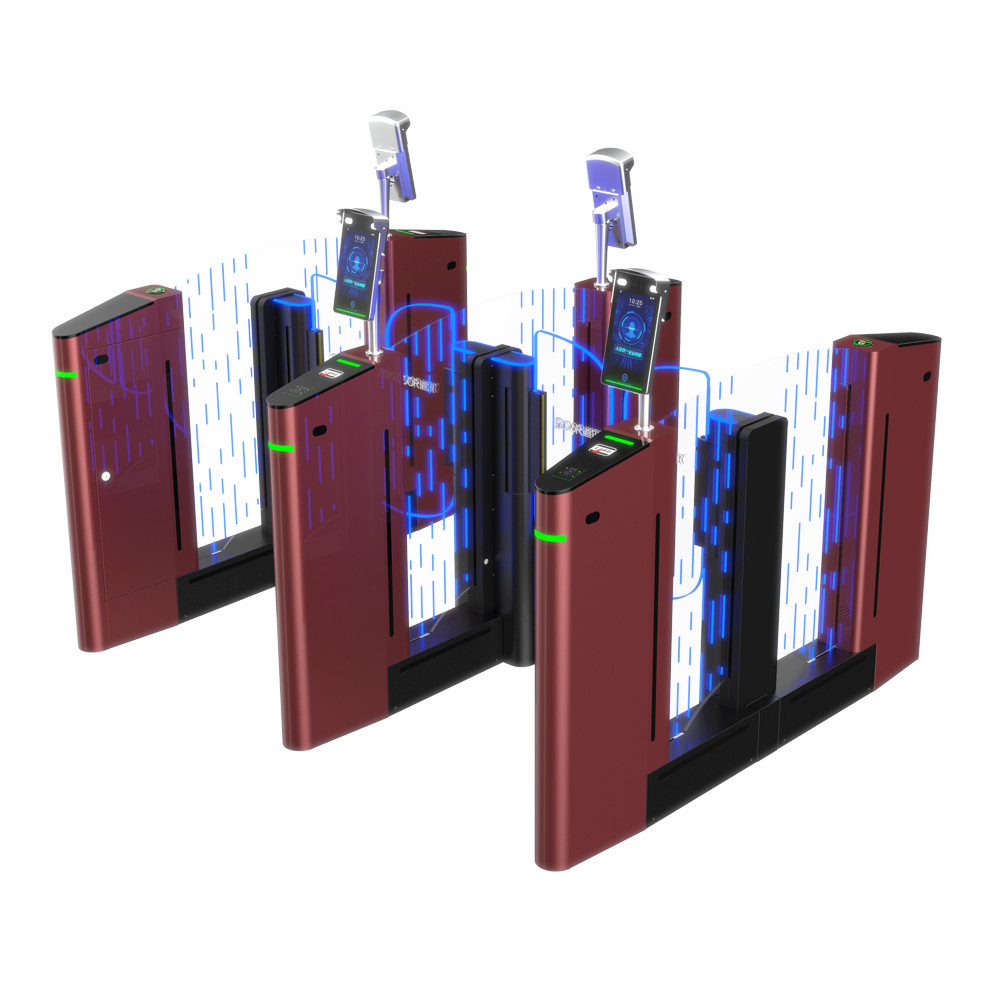

Servo Motor Speed Gates Access Control Gates
Speed gate: can be compatible with IC card, ID card, barcode card, fingerprint reading card recognition device used for staff, provide civilized, orderly access methods; effectively manage the access of staff. Can be widely used in the station, wharf subway, factories, office building, hotel, clubs, intelligent community, enterprises and institution that need intelligent access management
Framework |
Cold rolled sheet + baking finish (thickness 1.5mm)+10mm Acrylic Arm |
||
Dimensions |
1600*140*1000mm |
||
Arm length |
600-1100mm |
||
Dry Contact |
12V |
||
LED indicating light |
One |
||
Card-reading window: |
Two |
||
Rated power |
50-100W |
||
Operating temperature |
-20℃ ~ +70℃, RH ≤90% |
||
Related humidity |
≥90%RH |
||
Comunication Interface |
RS485,distance ≤1200m |
||
Power supply |
AC 220V/110V ±10% 50/60MHZ (optional) |
||
Opening speed: |
30-450persons per minute |
Main Features
1. working method can be set by the buttons on the main panel
2. Anti-pinch, anti-collision. If there is block during return of gate, motor stops working automatically. Reset again after a default delay, the force 2Kg.
3.Anti-illegal in, anti-intrusion, auto close for reverse direction.
4. Anti-collision, gate closes when no valid signal is given.
5. Protection functions for gate, gate open to prevent motor from being damaged if there is outer force collision.
6. Gates can be synchronous
7.Auto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable), default time is 10s.
8. One way or two way control
9. Unit can be controlled and administered by remote control
10. Led lamp indicator
Project picture:
Factory:
Packing:
Framework |
Cold rolled sheet + baking finish (thickness 1.5mm)+10mm Acrylic Arm |
||
Dimensions |
1600*140*1000mm |
||
Arm length |
600-1100mm |
||
Dry Contact |
12V |
||
LED indicating light |
One |
||
Card-reading window: |
Two |
||
Rated power |
50-100W |
||
Operating temperature |
-20℃ ~ +70℃, RH ≤90% |
||
Related humidity |
≥90%RH |
||
Comunication Interface |
RS485,distance ≤1200m |
||
Power supply |
AC 220V/110V ±10% 50/60MHZ (optional) |
||
Opening speed: |
30-450persons per minute |
Main Features
1. working method can be set by the buttons on the main panel
2. Anti-pinch, anti-collision. If there is block during return of gate, motor stops working automatically. Reset again after a default delay, the force 2Kg.
3.Anti-illegal in, anti-intrusion, auto close for reverse direction.
4. Anti-collision, gate closes when no valid signal is given.
5. Protection functions for gate, gate open to prevent motor from being damaged if there is outer force collision.
6. Gates can be synchronous
7.Auto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable), default time is 10s.
8. One way or two way control
9. Unit can be controlled and administered by remote control
10. Led lamp indicator
