Place of Origin: | China |
---|---|
Brand Name: | DOOR |
Certification: | CE / IS09001 |
Model Number: | DRTD6656 |
Minimum Order Quantity: | 1 lane swing gate |
Price: | Negotiable |
Packaging Details: | wood carton |
Delivery Time: | 5-7 working days |
Payment Terms: | T/T, Western Union, MoneyGram, L/C, D/A, D/P |
Supply Ability: | 2500 sets per month |
Motor: | DC Blushless Motor | Material: | 304 Stainless Steel |
---|---|---|---|
Size: | L1600mm*W125mm*H1000mm | Power Supply: | AC110/AC220+/-10% |
Channel Width: | <1100mm | Communication Interface: | RS485,dry Contact |
Method Of Driving: | Encoder | APP Debugging: | Available |
High Light: | supermarket swing gate,swing barrier gate |

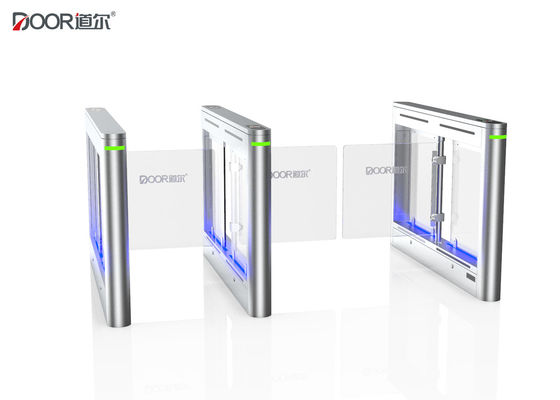

Dc Blushless Motor Pedestrian Swing Gate Durable Office Stadium Turnstile
Product Description
Product Features
Product Parameter
Structure Parameter | |
Material | SUS304 brushed stainless steel, top cover 2.0mm, whole body 1.5mm |
Swing gate material | Acrylic |
Channel Width | Standard 600mm, max 1100mm |
Technical Parameter | |
Passing Speed | 30-35 personal/min |
Opening Speed | Adjustable, fastest 0.2s |
Working Temperature | -25℃-+70℃ |
Mean Cycles Between Failure | 5 million times |
IP Rating | IP42 |
Electric Parameter | |
Voltage | AC110/AC220 50-60Hz |
Output Power | Single Core 30W, dual core 60W |
Driving Motor | DC brushless motor |
Method of position | Use the encoder to make sure the swing gate position |
Communication interface | RS485, TCP/IP interface |
Input / Output signal | dry contact signal input, 6 groups infrared sensor |
Product Function:
FAQ:
Q1: Do you have English version system?
A: Yes, we can provide English version system. Also you can use your own system as well.
Q2: Does the equipement include control board?
A: Yes, it is with control board. But if need our system to management, need to order extra channel management control board.
Q3: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development service with connection port.
Q4: How can we install the turnstiles/barrier gates? Is it easy?
A:Yes, it's easy to install, we have done most of the jobs before sending our products. You just need fix the gates with screws, and connect power supply cables and internet cables.Also we provide one sheet of specific manual specification in the package.
